Double planetary power mixer SX-1000A

Double planetary power mixer

Equipment Name:Double planetary power mixer

Equipment version: SX-1000A

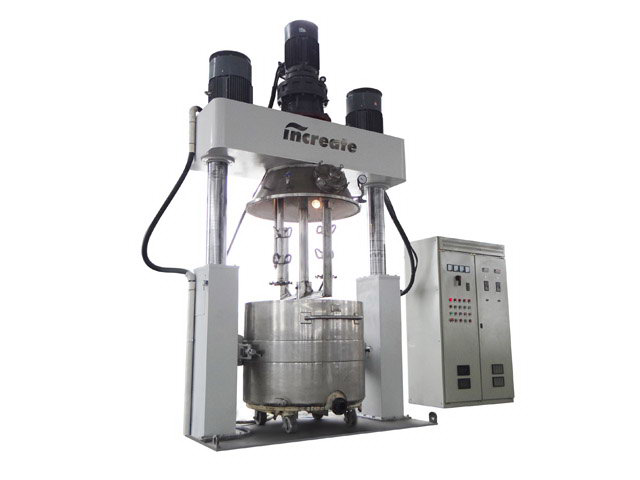

Double planetary power mixer SX-1000A equipment appearance :

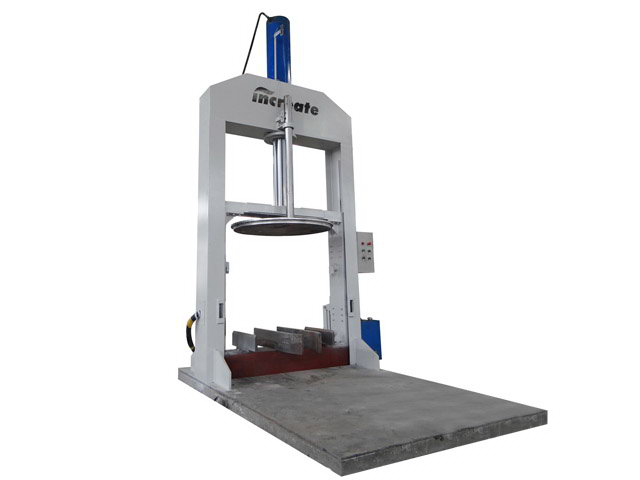

Hydraulic discharging machine CL-1000 equipment appearance:

Operation principle of double planetary power mixer

Double planetary power mixing machine with low speed mixing and high speed dispersion component parts, low-speed mixing part adopts the planetary gear transmission, also in the impeller rotation, the material around the movement, so it can achieve the ideal mixing effect in a short period of time.

High speed dispersion component revolution together with the planetary frame, and at the same time, high speed rotation, the material is subjected to strong shear and dispersion, the effect is several times to the ordinary mixing machine. The dispersion component classified into monodisperse shaft and shaft double dispersion, customers can choose according to need.

Two double frame agitator in the barrel body and the revolution and rotation, can realize the vacuum, heating, cooling, according to the conditions of speed regulation, with a mixing barrel can be a machine barrel, pressing machine, make the material more convenient.

Features of double planetary power mixer

Double planetary power mixer is a no dead point with dispersion, mixing equipment, suitable for polymer lithium ion battery liquid and liquid lithium ion battery electrode paste, electronic adhesive,adhesive, mold glue, silicone sealants, polyurethane sealant, anaerobic adhesives, inks, paints, cosmetics, ointment, isoelectronic, chemical, pharmaceutical, food, building materials, chemical industry, for the liquid and liquid, solid and liquid materials mixing, reaction, dispersion, dissolution, emulsification, homogenization process.

Application scope of double planetary power mixer

  1. Energy.: all kinds of battery paste, paste (lithium battery, nickel chromium battery, nickel hydrogen battery, fuel battery etc.);
  2. Electronic and electrical appliances: solder paste, ceramics, magnetic materials, silica gel ink, electronic adhesive, PVC palstic rubber,electronic component sealant, hot melt adhesive, all kinds of precious metal powder, paste;
  3. Chemicals :all kinds of sealants, adhesives (silicone sealant ,polysulfide sealant, sealant for insulating glass, waterproof sealant, construction sealant, anaerobic adhesive,stone adhesive ,mold adhesive ), synthetic resin rubber ,printing ink,slurry , abrasive (paste), wax products, synthetic rubber, synthetic resin, all kinds of powder materials, ceramic pigment;
  4. Pharmaceutical products: all kinds of ointment, gel (Medical paste, infantile umbilical paste, cold paste,ice paste, eye paste), dental products;
  5. Cosmetics, daily chemical products: moisturizing cream, lipstick, emulsion, gel, facial mask, mascara, foundation, nail polish, toothpaste, soap;
  6. Food: all kinds mixing for paste and cream type , seasoning, jam, chocolate.


Main function indexes and parameters

Machine Size


Planetary shaft motor

Power 22KW, Rotational speed 980r/min



Planetary shaft speed


Scattered shaft motor(2Piece/Set)

Power 30KW, Rotational speed 980r/min

Scattered shaft speed


Dosing and using crock size


Vacuum system

Vacuum degree -0.093MPa

Dispersion machine weight


Pressure feeder weight
